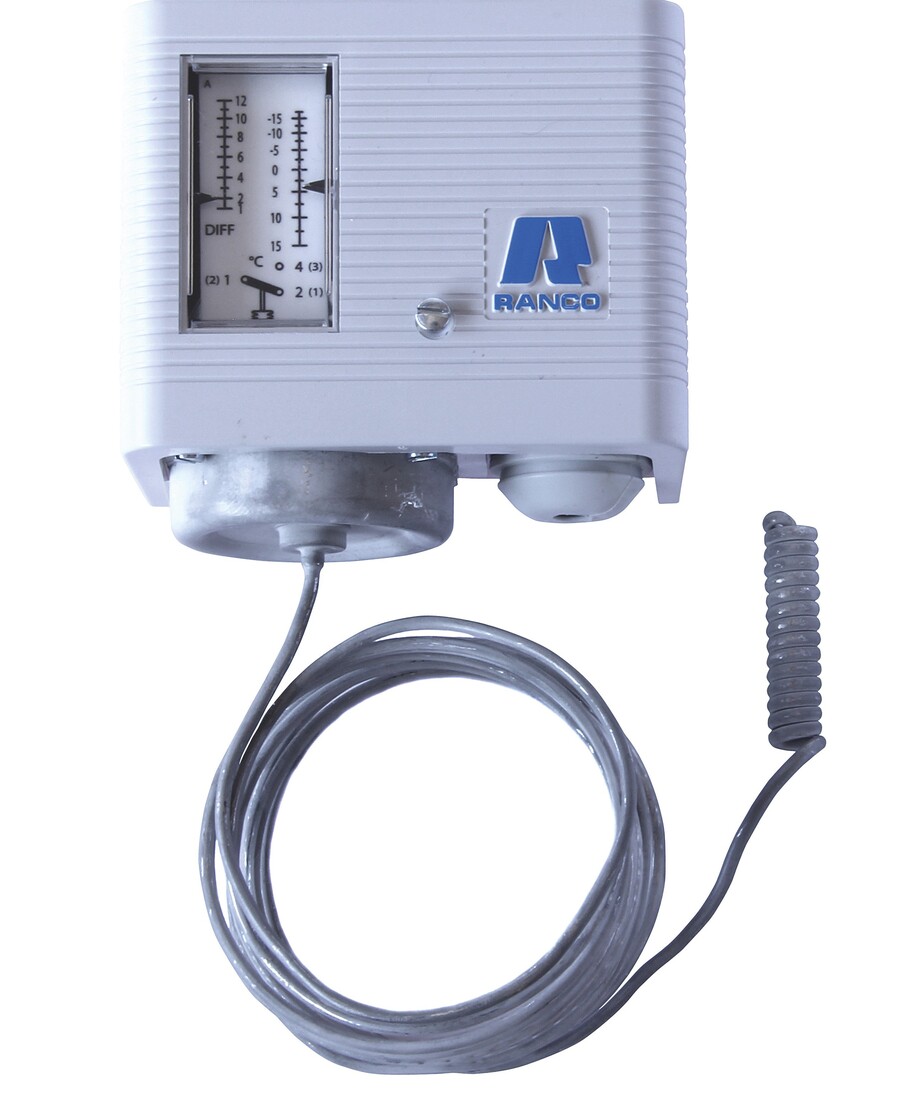

Ranco Low Temperature Control Coiled Bulb


Product Description

  • Ranco 016 thermostats are for room and commercial refrigeration, equipped with a unipolar SPDT switch that opens or closes when the temperature increases or decreases.
  • The tripping temperature can be adjusted by means of a screw on all versions, while the differential is adjustable on some models only.
  • Thermostats can also be equipped with a sensor to measure the air temperature, with straight capillary, with spiral capillary and remote bulb.
  • Straight and coiled capillary Thermostats are used on applications where it can be guaranteed that the sensing element used sensors along the entries length of the capillary.
  • Where local sensing is required the coiled end version is used.
  • The straight capillary is used on applications such as sensing the temperature over the length of the evaporator coil.
  • The only difference between the straight and coiled capillary thermostats is the coiling of the last few centimetres of the sensing element.
  • The Ranco O16-6951 is a low-temperature control with an adjustable set point and differential with a range of -18...+130C.
  • It’s a mechanical switch for temperature control, equipped with SPDT contacts, which open as the temperature decreases.
  • IP44 protection rating when top plate fitted
  • Set Point and differential adjustment by Phillips Head recessed Hex nuts
  • Adjustment temperature markings in Celsius only
  • Electrical ratings: SPDT switch 16(16)A 250Vac N.O. or N.C. - 1(1)A 250Vac on changeover
  • Sensor element 2000mm long with 9.5mm coiled end
  • Certified to EN60730–2–6 and EN60730–2–9 compliances
