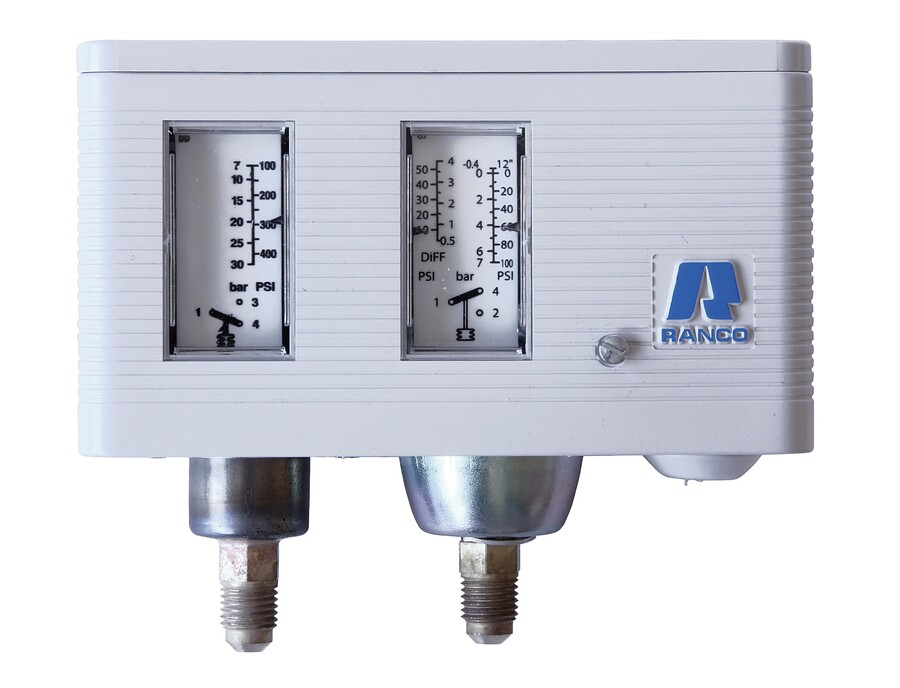

Ranco DP Control - 017-8703

017-8703

Product Description

The Ranco O17-8703 is a dual pressure control with adjustable set point, fixed differential and high and low side manual reset. It™s a mechanical switch for high and low pressure control of refrigerant, equipped with SPDT contacts, which open as the pressure increases or decreases.
- IP44 protection rating when top plate fitted
- Set Point adjustment by Phillips Head recessed Hex nuts
- Adjustment pressure markings in kPa only
- Electrical ratings: SPDT switch 16(16)A 250Vac N.O. or N.C. - 1(1)A 250Vac on changeover
- 7/16-20 UNF male fitting
- Certified to EN60730“2“6 and EN60730“2“9 compliances



Resources

Ranco O Pressure Controls Australia

Ranco O Pressure Controls Australia

1.10 MBPDF
Instruction RANCO O16 O17

Instruction RANCO O16 O17

344.91 KBPDF
