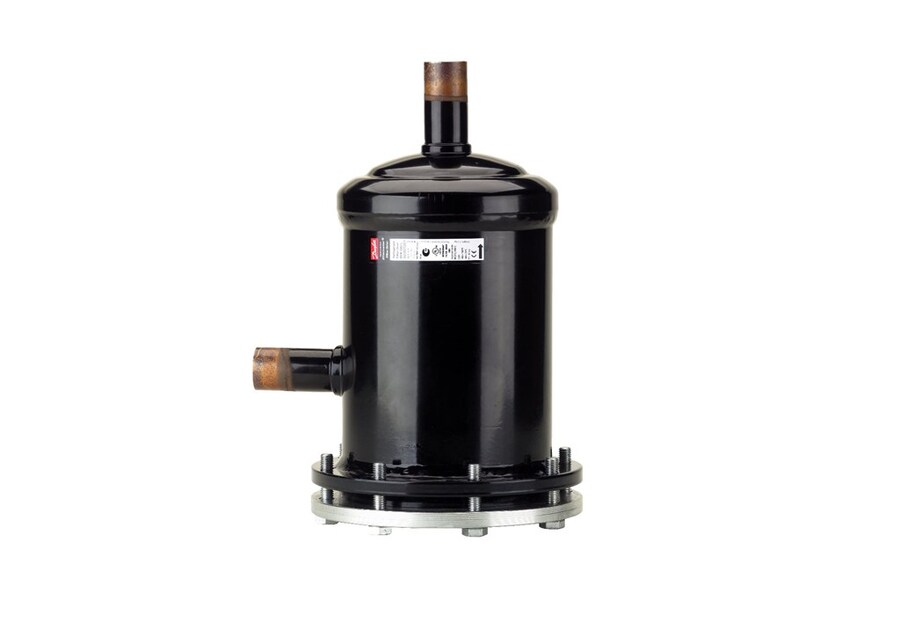

Danfoss DCR Filter 04811s Assy.
023U7254
- Type: DCR 04811sS
- Weight: 5.19 Kg
- Approval: CE, CSA, UL
- Connection material: COPPER
- Connection options: SOLDER, ODF
- Solder connection size [in]: 1 3/8 IN
- Solder conn. size [mm]: 35,00 mm
- Connection type: SOLDER, ODF
- Core size: 48 cu.in.
- Cover: PLUG
- Max. Working Pressure [bar]: 46,0 bar
- Max. Working Pressure [psig]: 667 psig
- Pressure design: NORMAL PRESSURE
- Replace component (code no.) 023Z9254
- Replace component (code no.) 023Z2871
- Specification key DCR 04811s
- Temperature range [°C] -40 to 70 °C
- Temperature range [°F] -40 to 160 °F
- Type designation DCR 04811s
