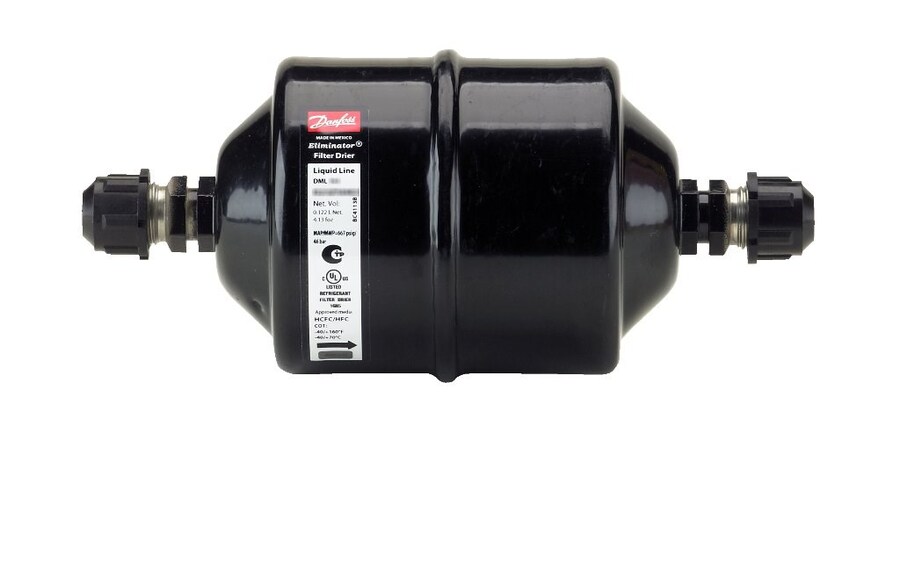

Danfoss Filter Drier DML 303 3/8", Flare

023Z0049

Product Description

Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3… Molecular Sieve. Temperature range: -40°C - +70°C.

  • Type: DML 303
  • Weight: 1.28 Kg
  • Acid capacity [g]: 6,40 g
  • Acid capacity [oz]: 0,226 oz
  • Approval: UL
  • Connection material: STEEL
  • Core size: 30 cu.in.
  • Inlet connection size [in]: 3/8 IN
  • Inlet connection size [mm]: 10 mm
  • Inlet connection type: Flare
  • Max. Working Pressure [bar]: 46,0 bar
  • Max. Working Pressure [psig]: 667 psig
  • Outlet connection size [in]: 3/8 IN
  • Outlet connection size [mm]: 10 mm
  • Outlet connection type: Flare
  • Temperature range [°C]  -40 to 70 °C
  • Temperature range [°F]  -40 to 160 °F
  • Type designation  DML 303
