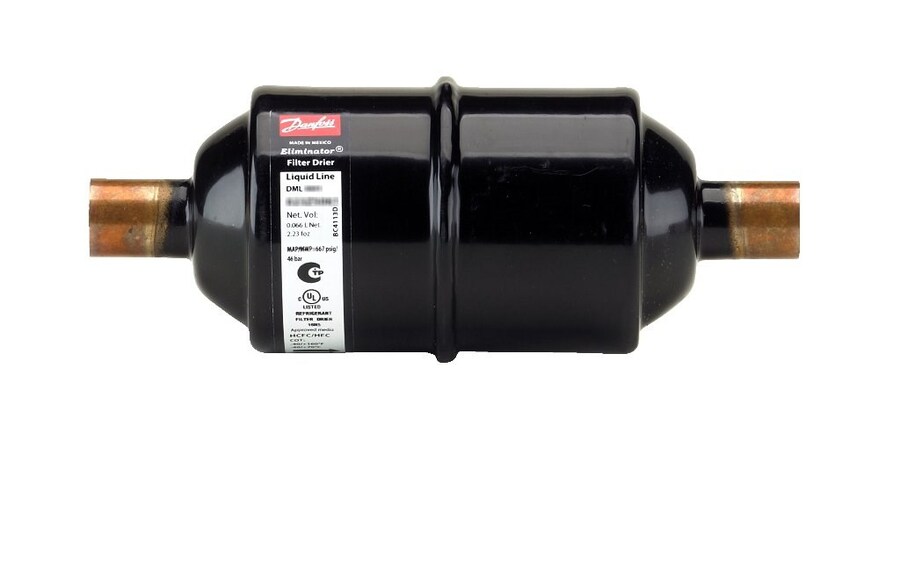

Danfoss Filter Drier DML 307S 7/8", Solder

023Z0071

Product Description

Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3… Molecular Sieve. Temperature range: -40°C - +70°C.

  • Type: DML 307S
  • Weight: 1.25 Kg
  • Approval: UL
  • Connection material: COPPER
  • Core size: 30 cu.in.
  • Inlet connection size [in]: 7/8 in
  • Inlet connection type: SOLDER, ODF
  • Max. Working Pressure [bar]: 46,0 bar
  • Max. Working Pressure [psig]: 667 psig
  • Outlet connection size [in]: 7/8 in
  • Outlet connection type: SOLDER, ODF
  • Refrigerant(s): HCFC/HFC
  • Temperature range [°C]: -40 to 70°C
  • Temperature range [°F]: -40 to 160°F

Resources

Danfoss Drier Data Sheet

Danfoss Drier Data Sheet

1,005.21 KBPDF
