Optimized for HFC refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils. 100% 3… Molecular Sieve. Temperature range: -40°C - +70°C.

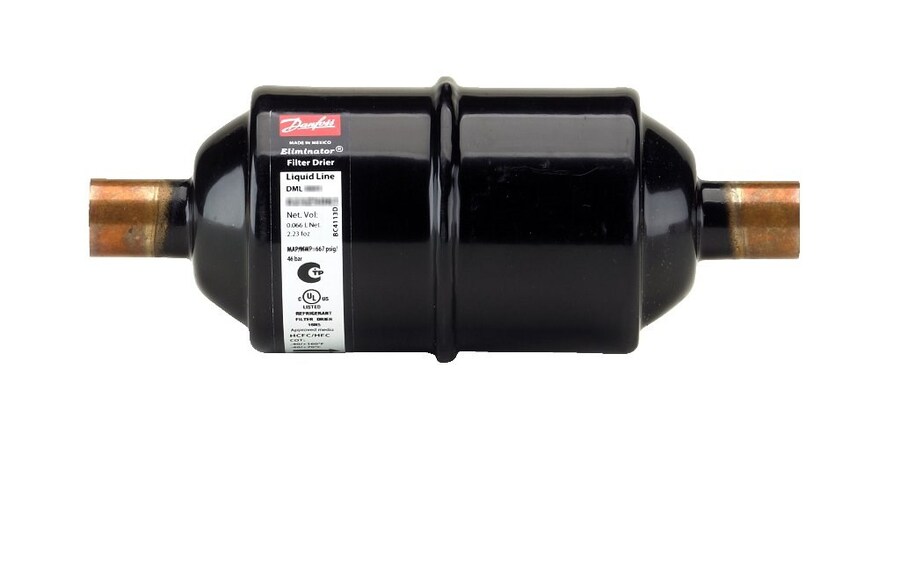

• Type: DML 417S
• Weight: 1.74 Kg
• Acid capacity [g]: 8,90 g
• Acid capacity [oz]: 0,314 oz
• Approval: UL
• Connection material: COPPER
• Core size: 41 cu.in.
• Inlet connection size [in]: 7/8 in
• Inlet connection type: SOLDER, ODF
• Max. Working Pressure [bar]: 35,0 bar
• Max. Working Pressure [psig]: 500 psig
• Outlet connection size [in]: 7/8 in
• Outlet connection type: SOLDER, ODF
• Temperature range [°C]  -40 to 70 °C
• Temperature range [°F]  -40 to 160 °F
