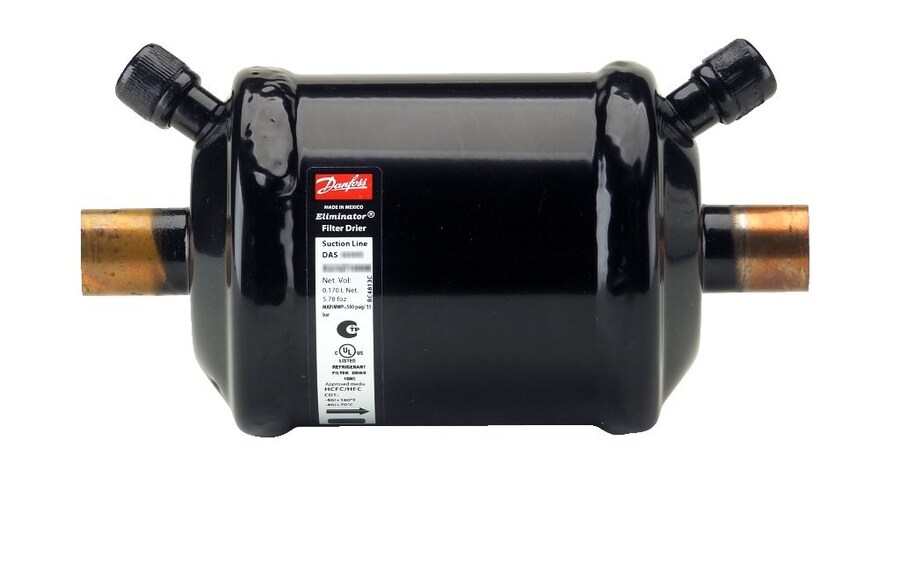

Hermetic burn-out filter drier for fluorinated refrigerants.
70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
2 Schrader access valves to measure pressure drop across the drier.
Max. working pressure: 35 bar.
120 mesh wire mesh for solid particle retention.

• Type: DAS 164VV
• Weight: 0.990 Kg
• Acid capacity [g]: 8,60 g
• Acid capacity [oz]: 0,303 oz
• Approval: UL
• Connection material: STEEL
• Connection notes  Schraeder Inlet / Outlet
• Core size: 16 cu.in.
• Inlet connection size [in]: 1/2 IN
• Inlet connection size [mm]: 12 mm
• Inlet connection type: Flare
• Max. Working Pressure [bar]: 35,0 bar
• Max. Working Pressure [psig]: 500 psig
• Outlet connection size [in]: 1/2 IN
• Outlet connection size [mm]: 12 mm
• Outlet connection type: Flare
• Temperature range [°C]  -40 to 70 °C
• Temperature range [°F]  -40 to 160 °F
