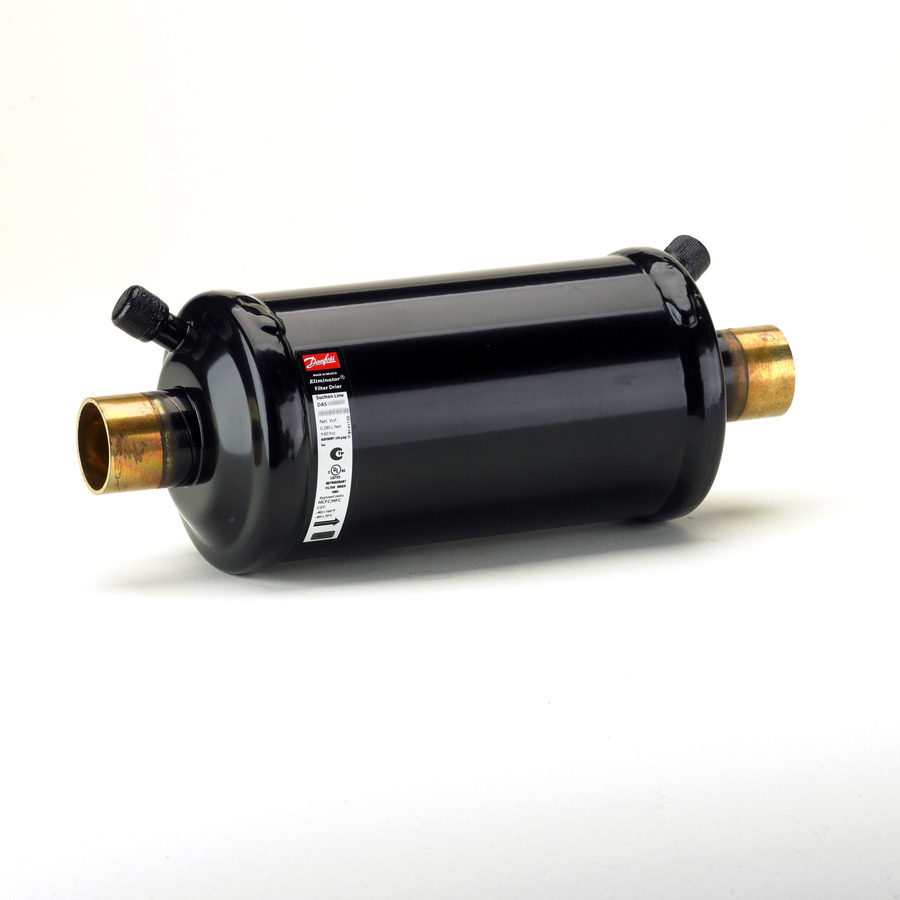

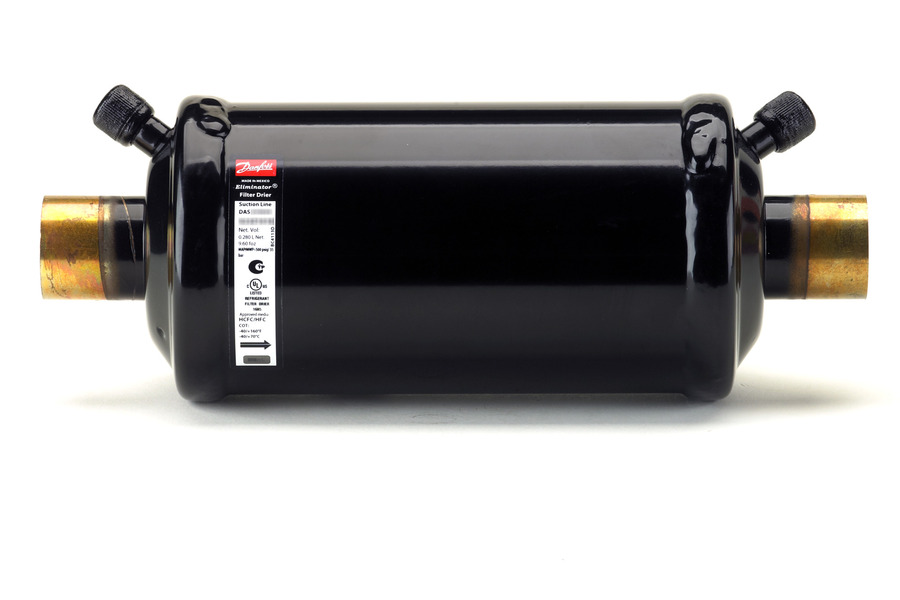

Danfoss - Suction Line Drier DAS419S 1 1/8" Solder

023Z1018

Product Description

  • Hermetic burn-out filter drier for fluorinated refrigerants.
  • 70% activated alumina and 30% Molecular Sieve for adsorption of acid and moisture.
  • 2 Schrader access valves to measure pressure drop across the drier.
  • Max. working pressure: 35 bar.
  • 120 mesh wire mesh for solid particle retention.
  • Type: DAS 419SVV
  • Weight: 2.02 Kg
  • Approval: UL
  • Connection material: COPPER
  • Connection notes: Schraeder Inlet / Outlet
  • Core size: 41 cu.in.
  • Inlet connection size [in]: 1 1/8 in
  • Inlet connection type: SOLDER, ODF
  • Max. Working Pressure [bar]: 35,0 bar
  • Max. Working Pressure [psig]: 500 psig
  • Outlet connection size [in]: 1 1/8 in
  • Outlet connection type: SOLDER, ODF
  • Refrigerant(s): HCFC/HFC
  • Temperature range [°C]: -40 to 70°C
  • Temperature range [°F]: -40 to 160°F
