Product Information:

• Optimized for HFC refrigerants refrigerants and polyolester (POE) or polyalkyl glycol (PAG) oils.
• 100% 3 Molecular Sieve.
• Temperature range: -40°C - +70°C.
• Max. working pressure: 42 bar.
• Dirt retention: Particles larger than 25 µm.

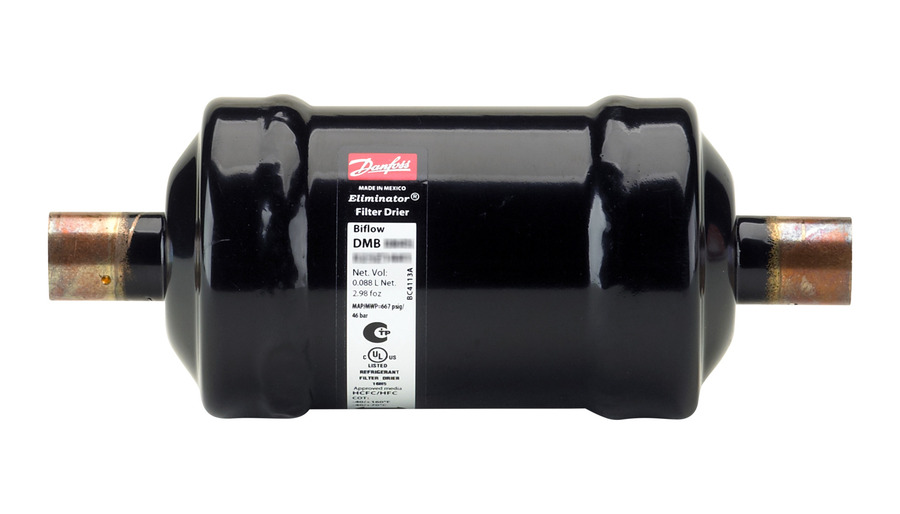

• Type: DMB 084S
• Weight: 0.550 Kg
• Acid capacity [g]: 0,96 g
• Acid capacity [oz]: 0,034 oz
• Approval: UL
• Connection material: COPPER
• Core size: 08 cu.in.
• Inlet connection size [in]: 1/2 IN
• Inlet connection type: SOLDER, ODF
• Max. Working Pressure [bar]: 46,0 bar
• Max. Working Pressure [psig]: 667 psig
• Outlet connection size [in]: 1/2 IN
• Outlet connection type: SOLDER, ODF
• Refrigerant(s): HCFC/HFC/HC
• Temperature range [°C]: -40 to 70°C
• Temperature range [°F]: -40 to 160°F
