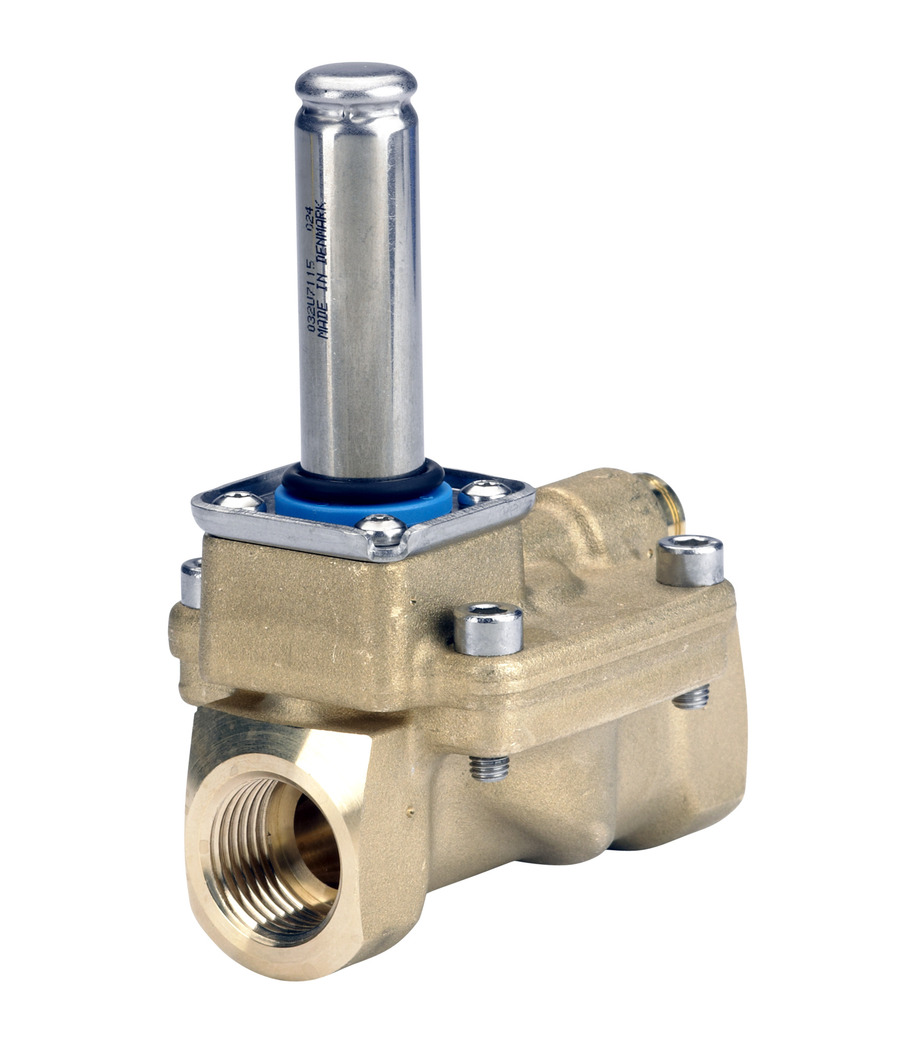

EV220B 15-50 is a universal indirect servo-operated 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.
Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.
- Type: EV220B
- Weight: 0.682 Kg
- Actuator size: 13.5 mm
- Actuator size [in]: 0.53 in
- Ambient temperature max. [°C]: 80 °C
- Ambient temperature max. [°F]: 176 °F
- Body material: Brass
- Connection: G 1/2
- Connection Internal/External: Internal
- Connection standard: ISO 228-1
- Cv value [USgal/min]: 4,600 gpm US
- Differential pressure [bar]: 0,3 - 16 bar
- Differential pressure [psi]: 4,3 - 228,6 psi
- Function: N C
- Kv value [m³/h]: 4,000 m3/h
- Max. Working Pressure [bar]: 16,0 bar
- Max. Working Pressure [psig]: 232 psig
- Medium temperature range [°C]: -30 to 140°C
- Medium temperature range [°F]: -20 to 285°F
- Number of ways: 2/2
- Operation: Servo-operated (diaphragm)
- Orifice size [mm]: 15,00 mm
- Orifice size [in]: 5/8 in
