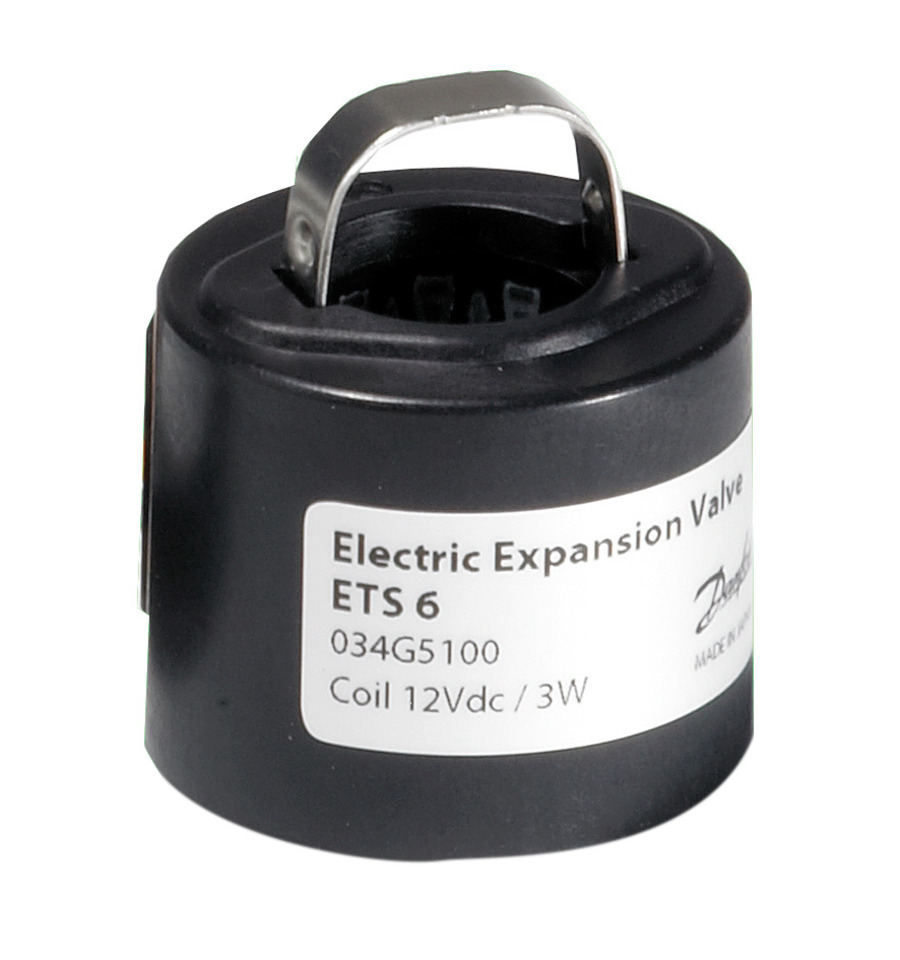

Elec. expansion valve coil, ETS 6


Product Description

The coils are used together with expansion valves type ETS 6.

Available with cable length from 0.7m - 3m. IP 66 enclosure, insulation class E (UL Class 105 (A)). Current voltage 12 VDC.


Weight 0.220 Kg Approval EAC, LLC CDC TYSK Cable length [in] 118,00 in Cable length [m] 3,00 m Insulation Class E Current range [A] 0,26 A EAN number 5702428825450 Electrical connector JST XHP-5 Enclosure rating IP66 Identical product 034G5130 Pack format Single pack Product description Coil for Electronic Exp. Valve Product Group Expansion valves Product name Elec. expansion valve coil Protection tube length [mm]  2,8 m Quantity per pack format 1 PC Supply voltage [V] DC 12,00 V UL Class UL CLASS 105 (A) Used for product ETS 6


Electric expansion valve, type ETS 6

Electric expansion valve, type ETS 6

0 bytesPDF
