Max. operating temperature, valve body: 110°C / 230°F. Max. working pressure: 46 bar / 667 psig. Max. test pressure: 51 bar / 740 psig. TGE valves are designed for bi-flow operations.
- Type: TGEX
- Weight: 0.595 Kg
- Approval: C UL US LISTED, EAC, LLC CDC TYSK
- Body material: BRASS
- Capillary tube length [in]: 59,0 in
- Capillary tube length [mm]: 1.500 mm
- Conn. size [in]: 5/8 in x 7/8 in x 1/4 in
- Direction: Straightway
- EAN number: 5702428139397
- Equalization connection typ: SOLDER, ODF
- Identical product: 067N2179
- Inlet connection type: SOLDER, ODF
- Max. Working Pressure [bar]: 46,0 bar
- Max. Working Pressure [psig]: 667 psig
- Orifice capacities [kW]: 43,00 kW
- Orifice capacities [TR]: 12,00 TR
- Orifice size: 12,5
- Outlet connection type: SOLDER, ODF
- Pack format: Multi pack

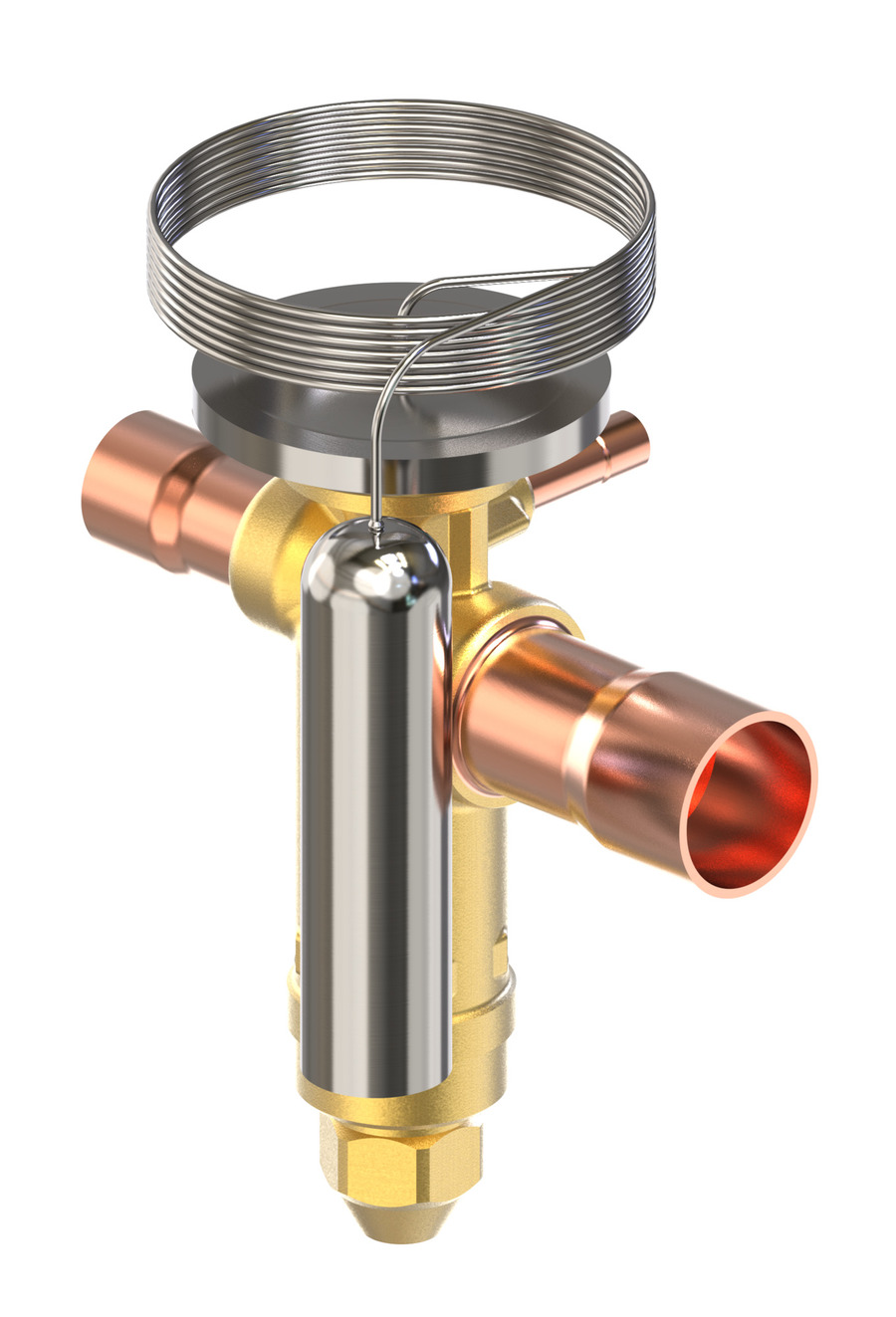

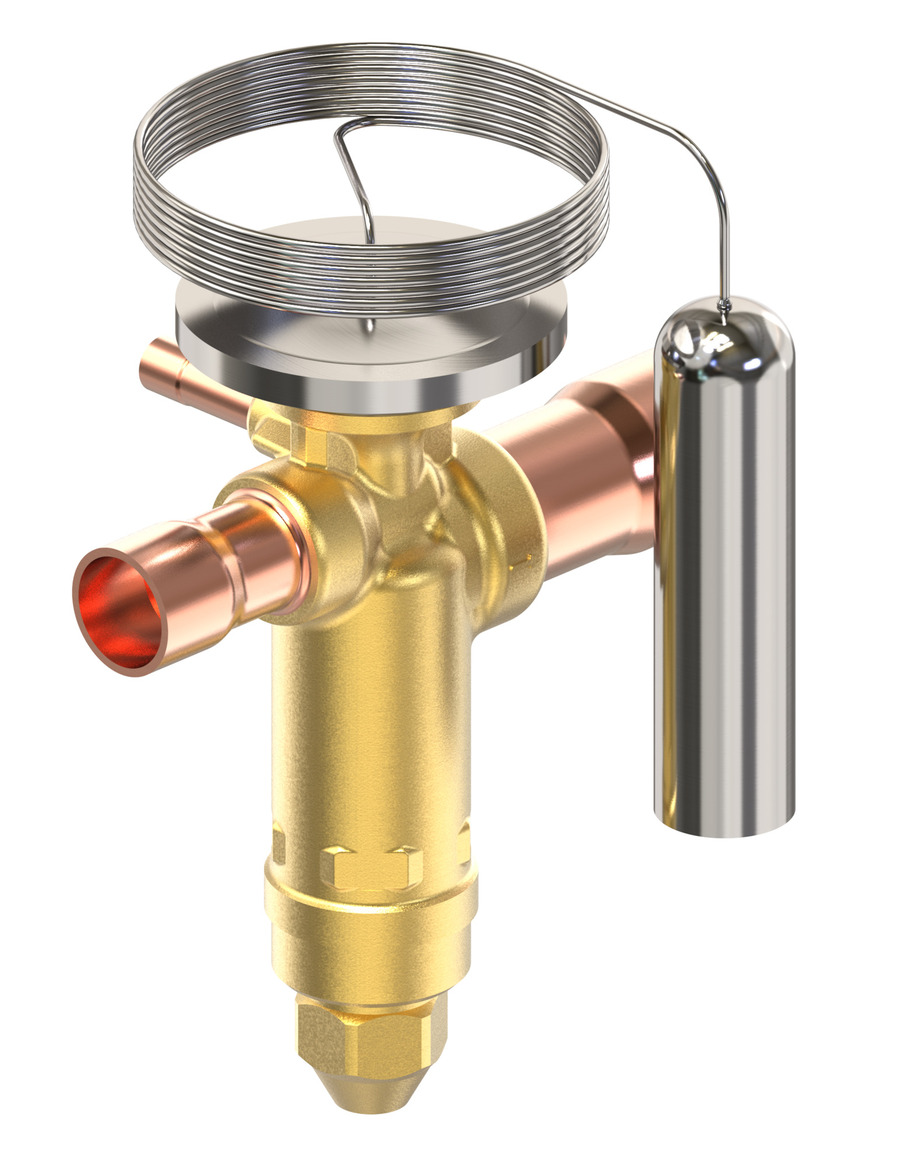

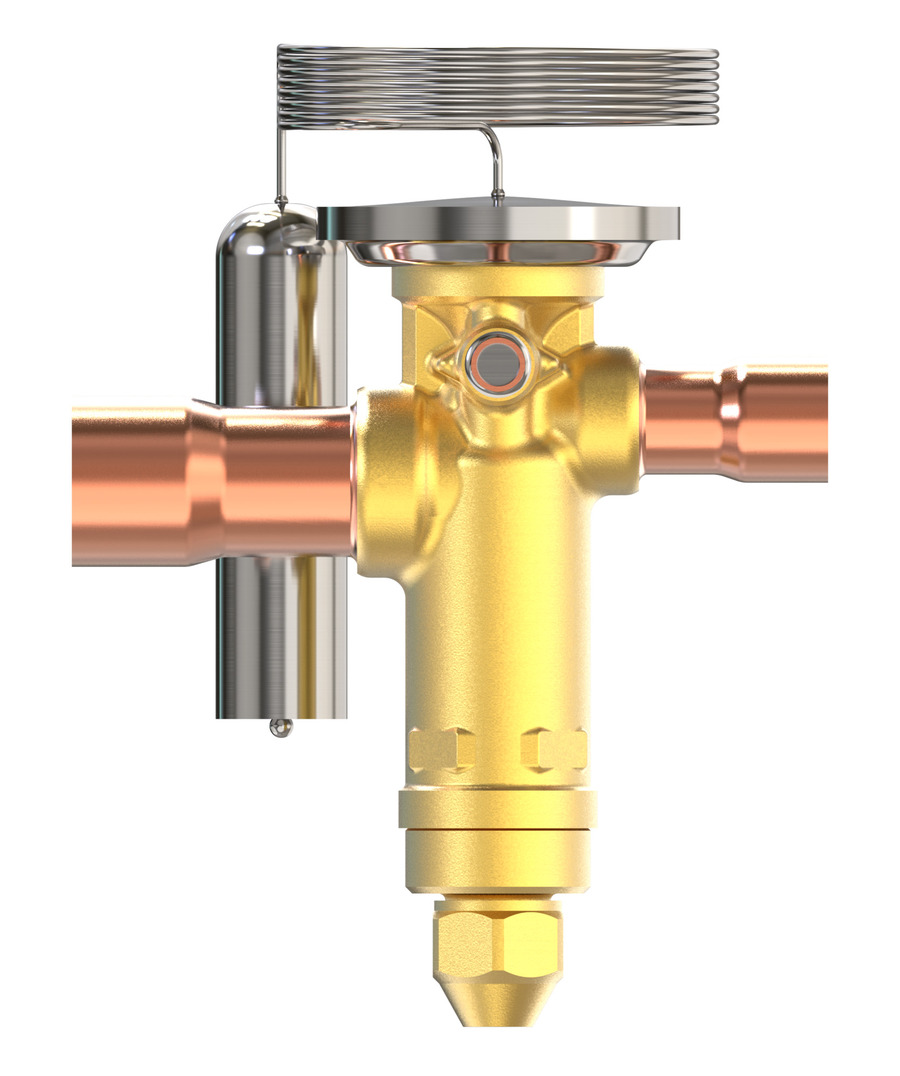

- Product name: Thermostatic expansion valve
- Quantity per pack: 8 pc
- Refrigerant(s) R22/R407C
- Static Superheat (SS) [°C] 4,0
- Static Superheat (SS) [°F] 7,20 °F
- Temperature range [°C] -40 to 10 °C
- Temperature range [°F] -40 to 50 °F
