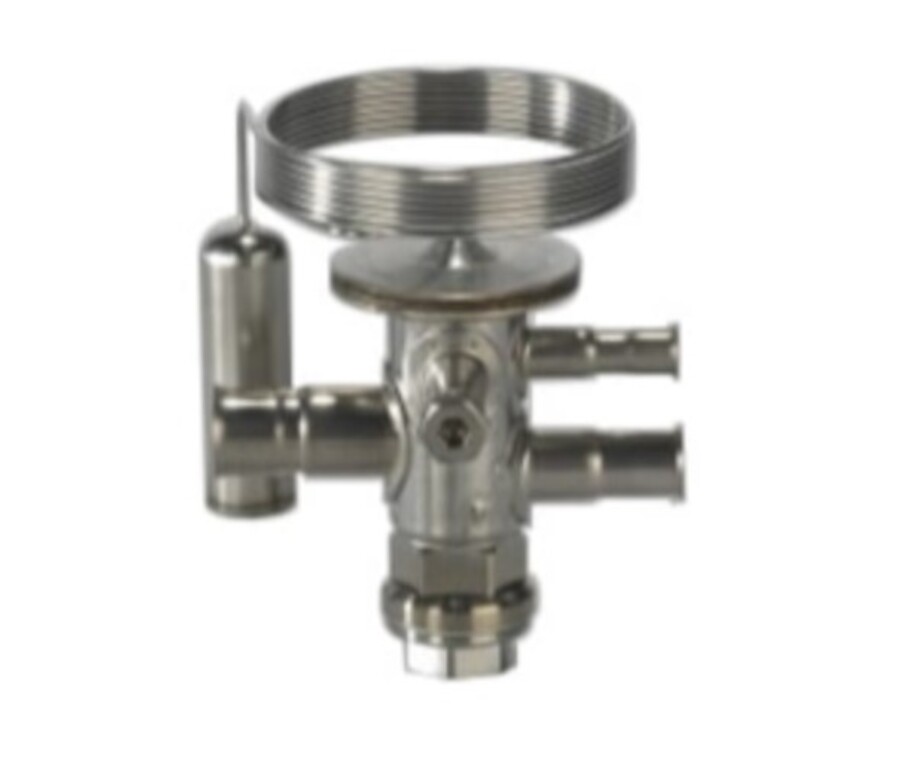

Danfoss TUAE - Thermostatic expansion valve R448A External Equalized (Solder)

068U3859

Product Description

Danfoss TUAE TX Valves - solder/solder/solder, R448A / R449A

The thermostatic expansion valves TUA/TUAE, TCAE with exchangeable orifice, TUB/TUBE/ TCBE with fixed orifice and TUC/TUCE/TCCE with fixed orifice and fixed superheat setting, are made of stainless steel and therefore especially well suited to refrigeration systems in the food industry and where aggressive environments exist. These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.

Specification:

  • Temperture range: +10°c to -40°c
  • Straight-away valve body, inlet size 3/8 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar.
  • Danfoss TUA/TUAE thermostatic expansion valves
  • With interchangeable Orifice assembly(Bi-flow)
  • Regulate the injection of liquid refrigerant into evaporators.
  • Injection is controlled by the refrigerant superheat.
  • Valves are especially suitable for liquid injection in ”dry“ evaporators where the superheat at the evaporator outlet is proportional to the evaporator load.
