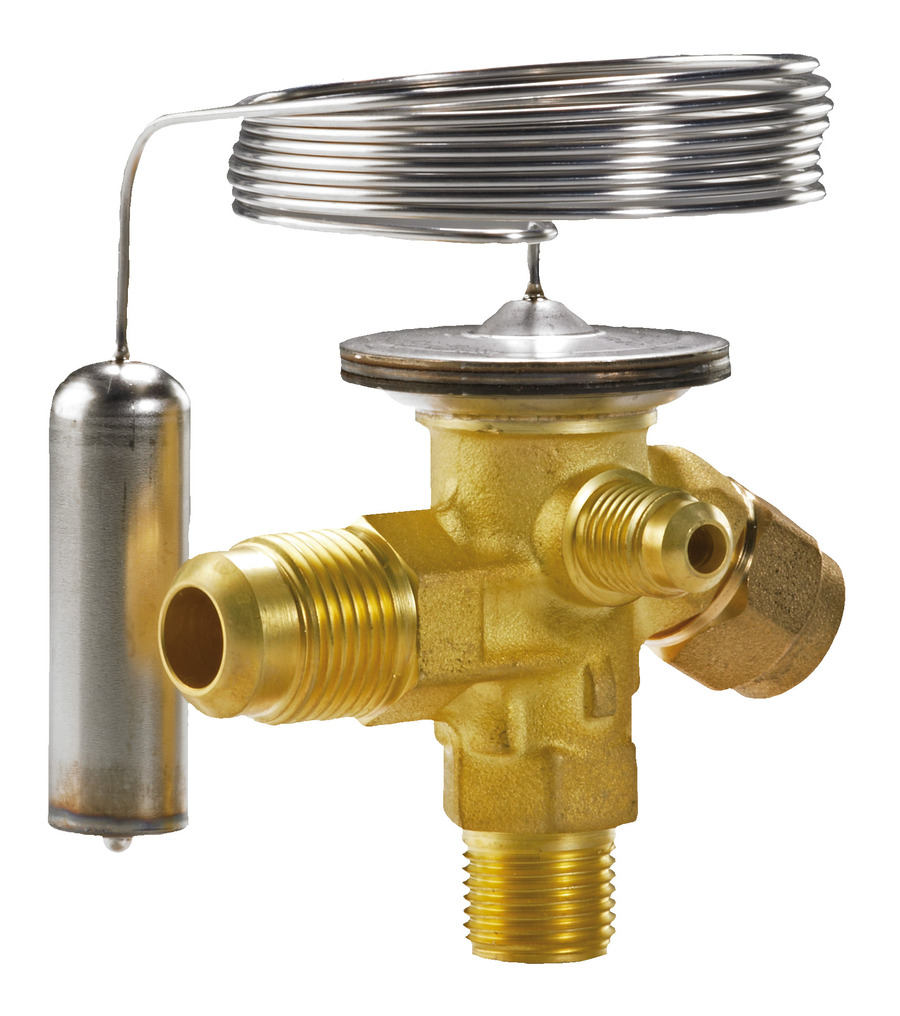

Thermostatic expansion valve, TE 2, R22/R407C

068Z3209

Product Description

TX 2 / TEX 2 Element for Expansion Valve, Flare/Flare, R22 / R407C

  • Angleway valve body, inlet size 3/8 inch, outlet size 1/2 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar.
  • TEX 2, flare/flare, versions with external equalization: equalization connection size 1/4 in. / 6 mm.
  • TX2 / TEX 2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants e.g. R407C / R22, R134a, R404A / R507,R407C, R407F and R407A.
  • TX2 / TEX2 valves are supplied as a parts programme, with separate thermostatic element/valve body and orifice assembly.
  • Available as angleway valves with flare x flare or flare x solder connections, with internal and external equalisation.

Applications:

  • Traditional refrigeration
  • Heat pump systems
  • Air conditioning units
  • Liquid coolers
  • Transport refrigeration
  • Large temperature range
  • Equally applicable to freezing, refrigeration and air conditioning applications
  • Interchangeable orifice assembly
  • Easy stocking
  • Easy capacity matching
  • Better service
  • Can be supplied with MOP (Max. Operating Pressure)
  • Protects the compressor motor against excessive evaporating pressure during normal operation
  • Valves for special temperature ranges and refrigerants can be supplied
  • Flare / solder adaptor can be supplied

Resources

Spare parts for Thermostatic expansion valves, typ

Spare parts for Thermostatic expansion valves, typ

0 bytesPDF
Thermostatic expansion valve, type T 2 and TE 2

Thermostatic expansion valve, type T 2 and TE 2

0 bytesPDF

Spare Parts

  • Danfoss Orifice TE2 - 00
  • Danfoss Orifice TE2 - 01
  • Danfoss Orifice TE2 - 02
  • Danfoss Orifice TE2 - 03
  • Danfoss Orifice TE2 - 04
  • Danfoss Orifice TE2 - 05
  • Danfoss Orifice TE2 - 06
  • Danfoss Orifice TE2 - 0X
  • Spare part, T2; TE2, Filter
