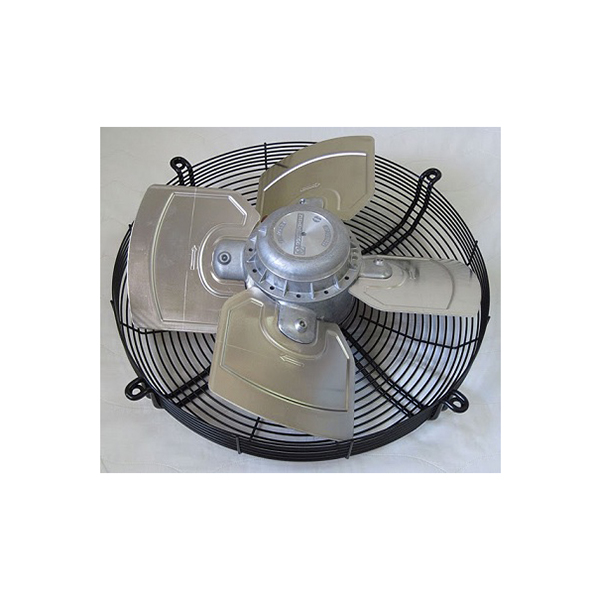

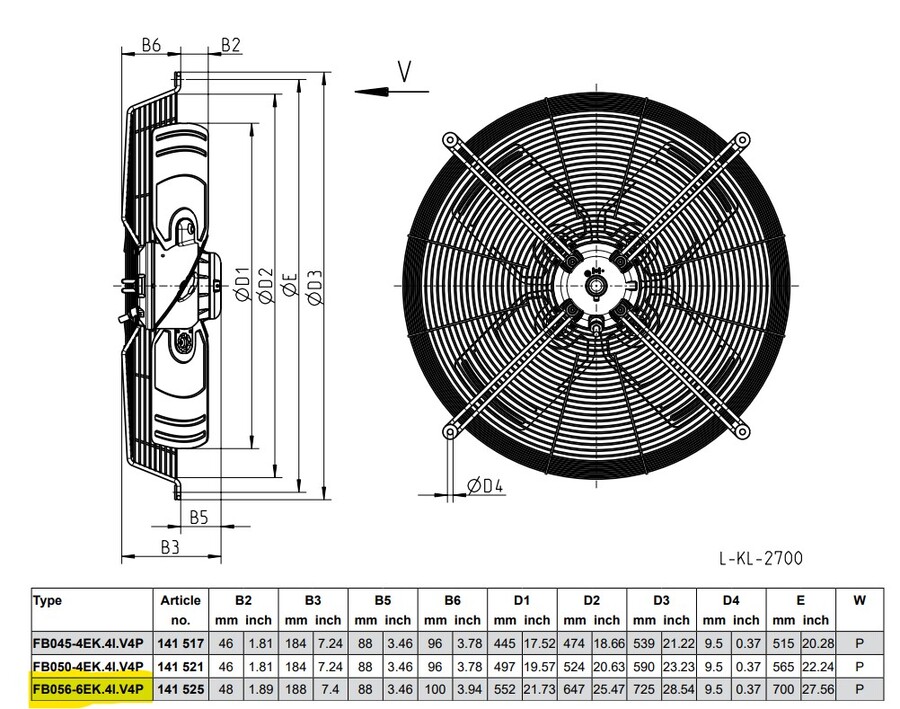

Fan Axial Ziehl Abegg 6P 3Ph 560mm

FB056-SDK.4FV4P

Product Description

  • Electrical connection Terminal box -  K62 Min.
  • Operating temperature °C -  -25***
  • Mounting type terminal box - Mounted on Stator
  • Type of protection - IP54
  • Thermal class - THCL155
  • Connection diagram - 1360-104XA Rating plate 1x fixed
  • Fitting position - H/Vu/Vo
  • Motor protection thermal contact
  • Impregnation - Moisture and hot climate protection
  • Quality of bearings - Ball bearing with long-time lubrication
  • Material Rotor - Aluminium
  • Painting rotor - Rotor 1 coat painted colour rotor RAL 9005 (jet black)
  • Material blades - Aluminium
  • Painting impeller - 1 coat painted Colour blades RAL 9005 (jet black)
  • Guard grille type - ring grill
