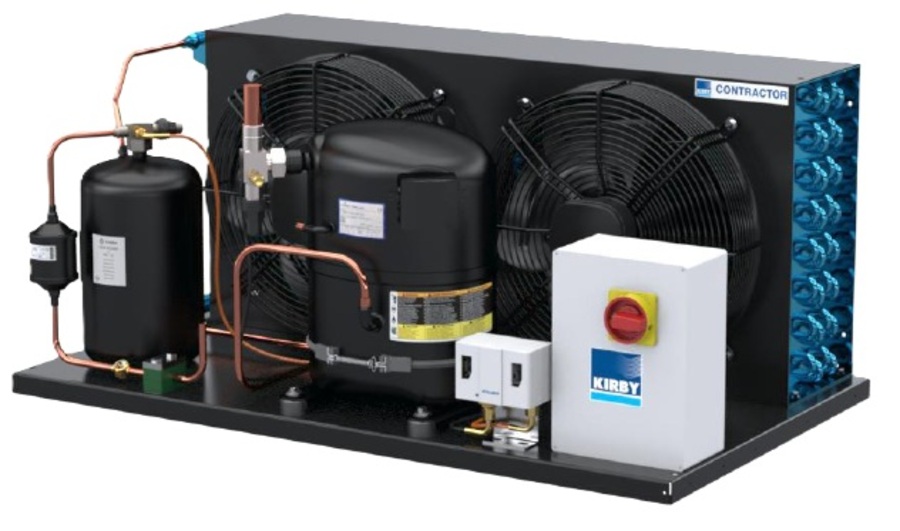

Kirby Contractor KCM560GTE Med Temp R448a/R404a 3PH, Fully Wired

KCM560GTE

Product Description

Developed for harsh Australian conditions, the Kirby Contractor Hi-Ambient condensing units are rated for operation up to 43°C ambient.

With improved performance due to the inclusion of large condensers, the Kirby Contractor range delivers high output with high efficiency. And because they’re from Kirby, they’re robust and reliable - guaranteed

Features & Benefits

The Kirby Contractor Condensing Units offer proven design attributes to be installation ready:

  • Incorporating either an Embraco or Copeland compressor to deliver reliability and proven performance
  • 3PH models fully wired electrical box with contactor, overload, and Isolator switch
  • High ambient condenser optimises efficiency and airflow for continuous operation at up to 43 °C ambient temperatures
  • Lower noise and vibration levels through clever compressor design
  • Select units avaliable in single phase or three phase
  • All condenser coils supplied with “Blue Coat” fin and coil protective coating
  • Contractor Series units include liquid line drier, sight glass and HP/LP control
  • Compact footprint for ease of installation
  • Durable painted galvanised bases maximise service life
  • Premium quality inclusions and controls

Tech Specification

  • Width 990mm
  • Depth 570mm
  • Height 450mm
  • Weight 88kg
  • Suction Connection 15.88
  • Liquid Connection 9.52
  • Supply Power 380-420/3
  • Input Power 2620W
  • Rated Load 4.5amps
  • Max Contin. Current 7.3amps
  • Locked Rotor Amps 41amps
  • Condenser Fan Qty 2
  • Condenser Fan Diameter 350mm
  • Condenser Fan Type AC
  • Sound Power 79.3LwA
  • Sound Presure 59.3LpA
