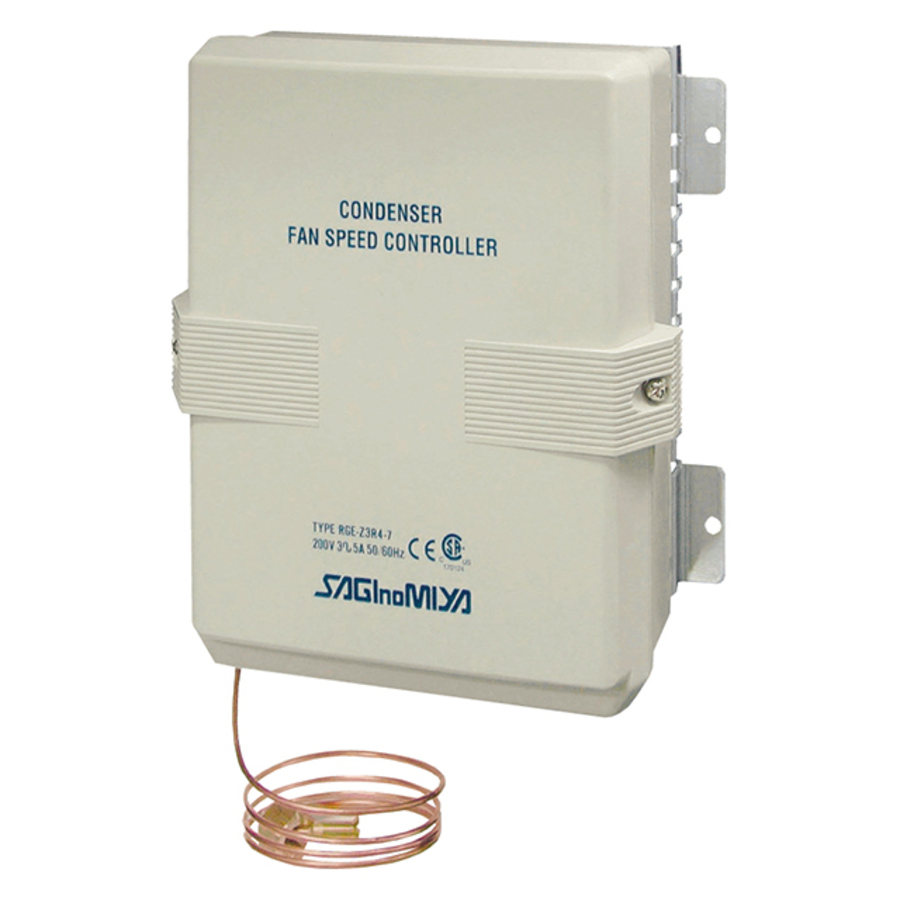

Saginomiya - Three Phase Fan Speed Controller

Suitable for controlling the condenser fan speed of refrigeration condensing unit, packaged air conditioner, and other units which are operated throughout a year.

●Keep condensing pressure constant in winter and intermediate seasons for stable operation.

●One of the following operation models is selectable when low speed. Minimum Speed Operation Cut Off Operation

●Excellent electric noise-resisting design.

●Applicable to the external forced operation switch(RGE).

SPECIFICATIONS

Control method : Phase Control

Max. working pressure : 681 psi [4.7MPa]

Fluid teperature : -4 to 248°F [-20 to 120°C] (RGE) / -4 to 158°F [-20 to 70°C](XGE)

Enclosure : IP54 (RGE) / IP65 (XGE)
