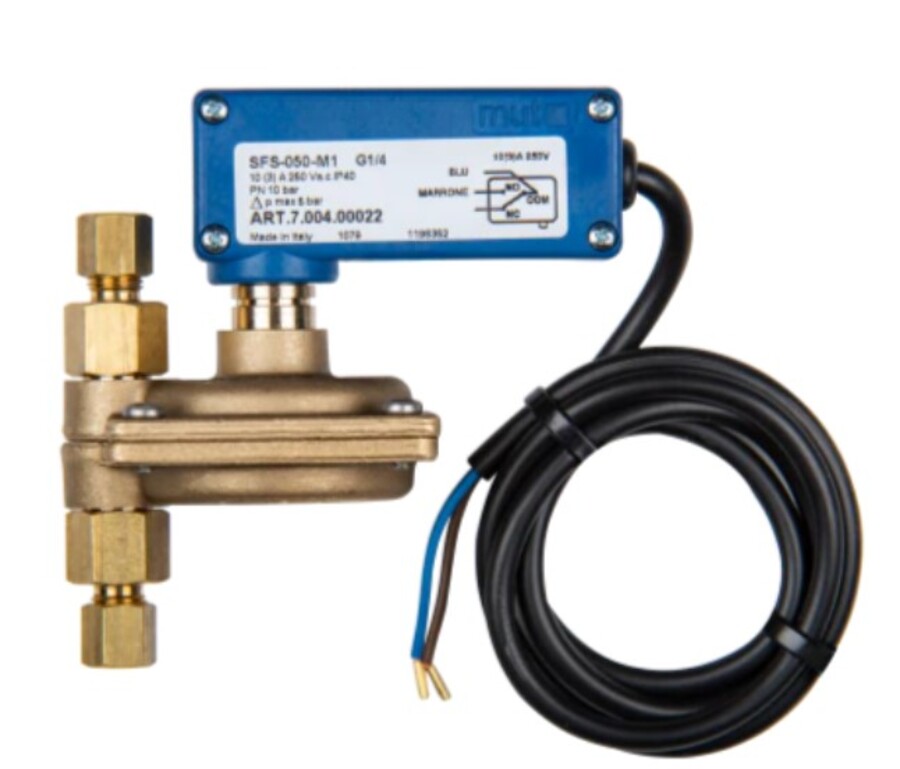

SFS Water Pressure Flow Switch

SFS1

Product Description

The SFS-1 is a differential water pressure switch which has been designed as a safety cut-out on loss of water flow. A typical application would be to mount the SFS-1 across the condenser vessel of a water Packaged Air Conditioning unit to prove water flow. Supplied with 1/4" brass fittings.

  • Make: 5kpa
  • Break: 2kpa
  • Max static: 1000kpa
  • Max differential: 500kpa
  • Max fluid temperature: 95oC
  • Min fluid temperature: 5oC
  • Contact rating: 10(3.0) A @ 250v
  • Degree of protection: IP40
